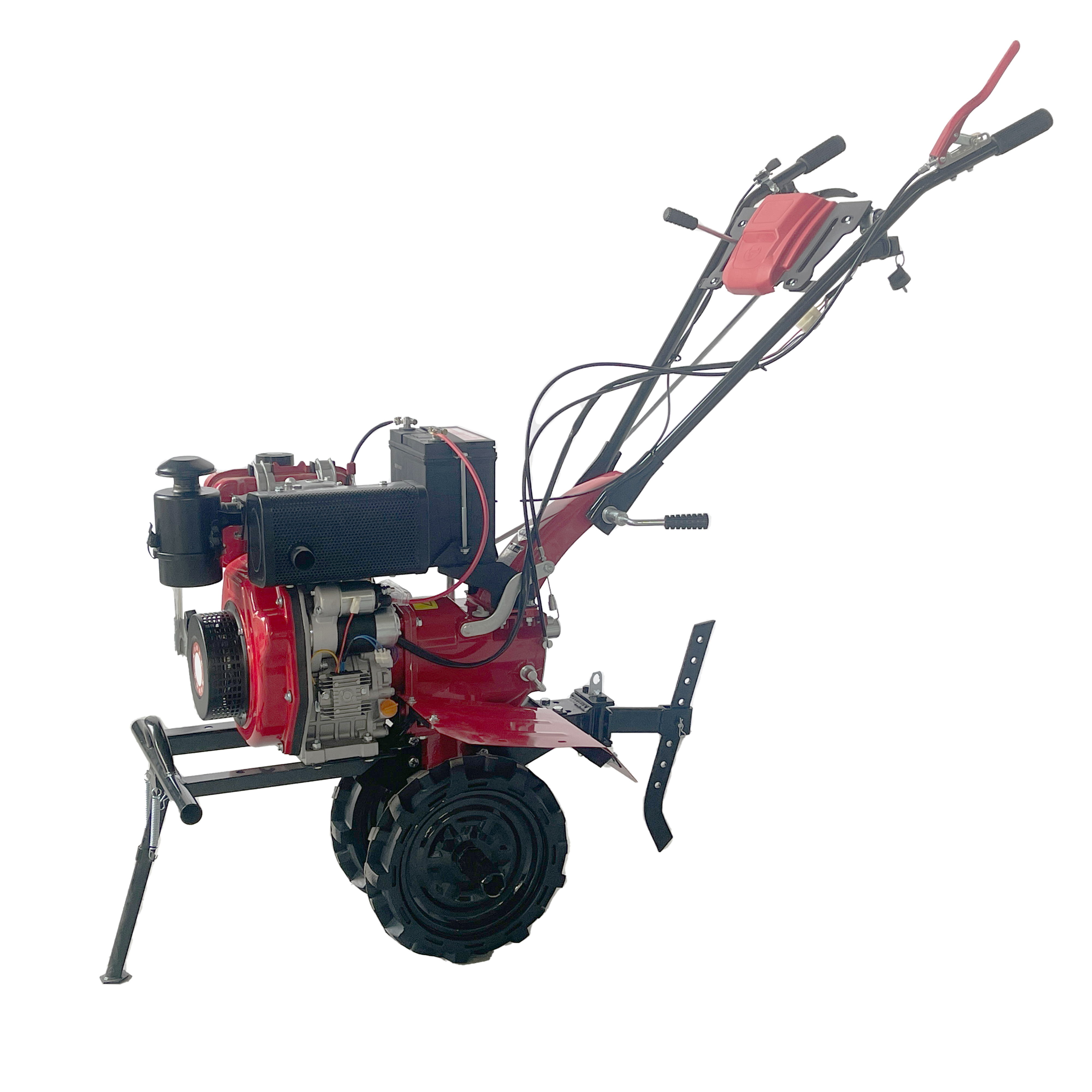

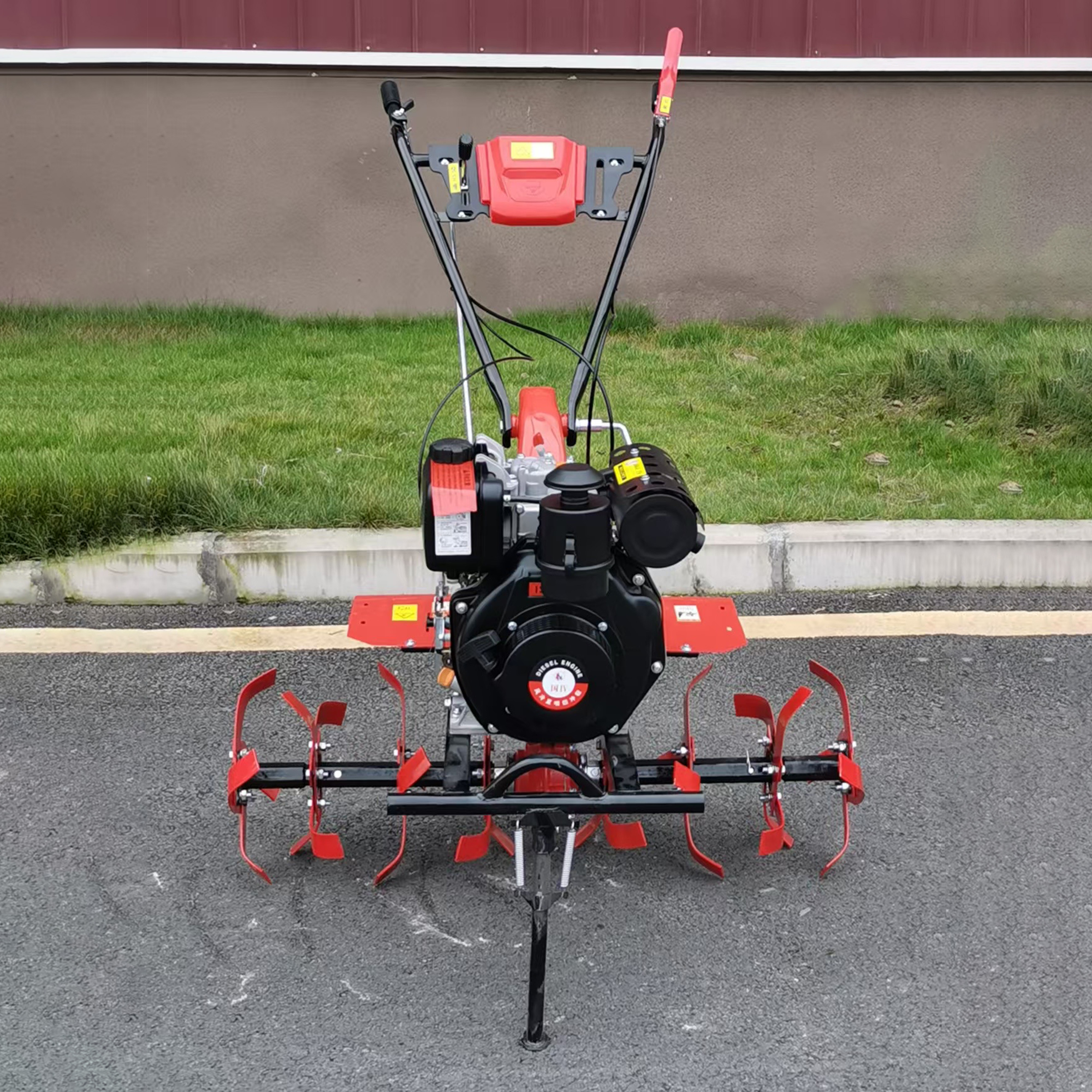

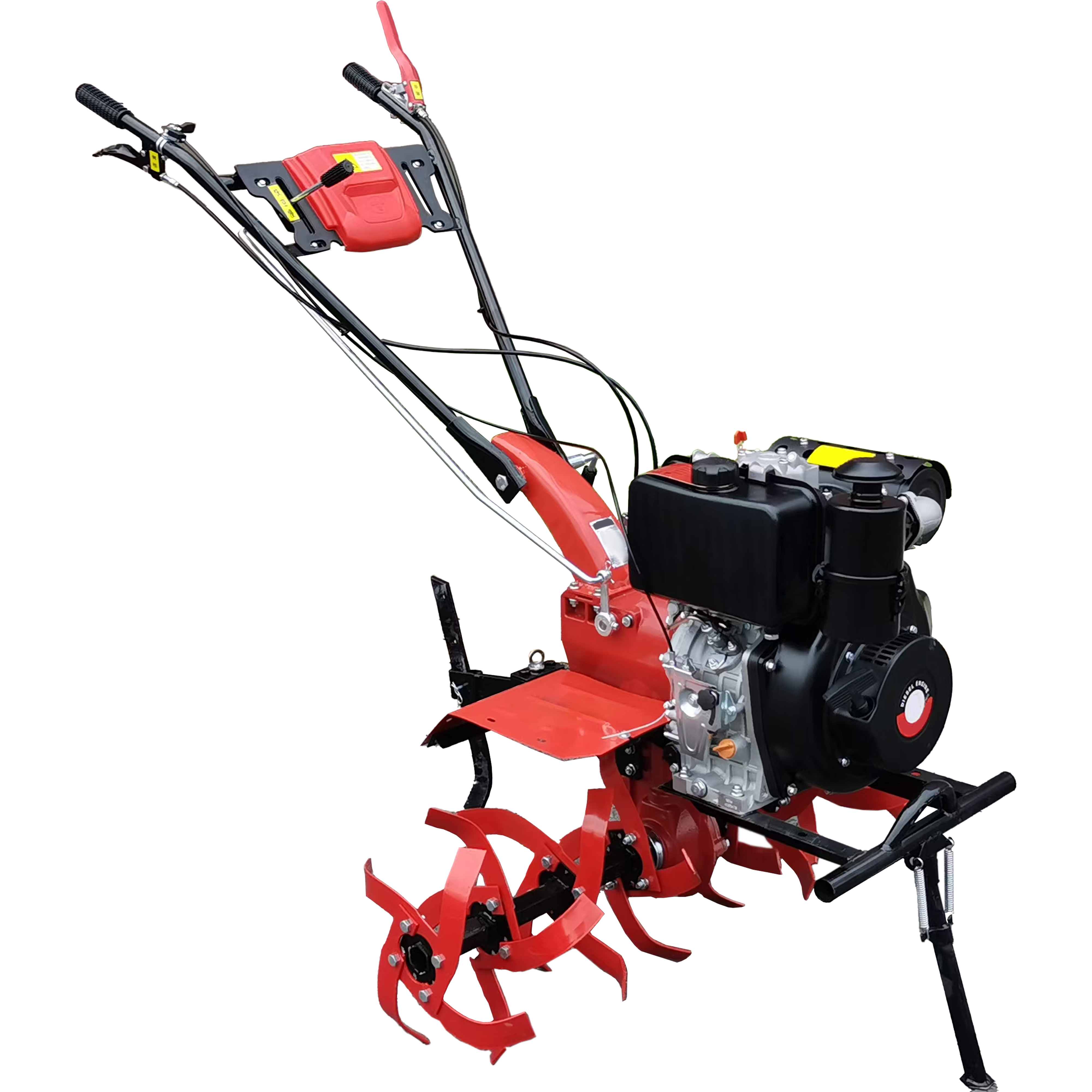

The TSBL1350D diesel mini tiller is a high-power and heavy-duty agricultural machine designed for intensive soil cultivation in large farms and demanding field conditions. Equipped with a robust 195FA diesel engine (15 HP), this model delivers exceptional torque and strong power output, making it ideal for deep tilling, land preparation, and continuous heavy-duty operation.
Featuring a durable gear transmission system, the TSBL1350D ensures efficient power transfer and long service life even under high-load working conditions. The machine offers multiple gear options (2 forward + 1 reverse), providing flexible control and smooth maneuverability across various terrains. Its centrifugal clutch system guarantees stable engagement and enhances operational safety.

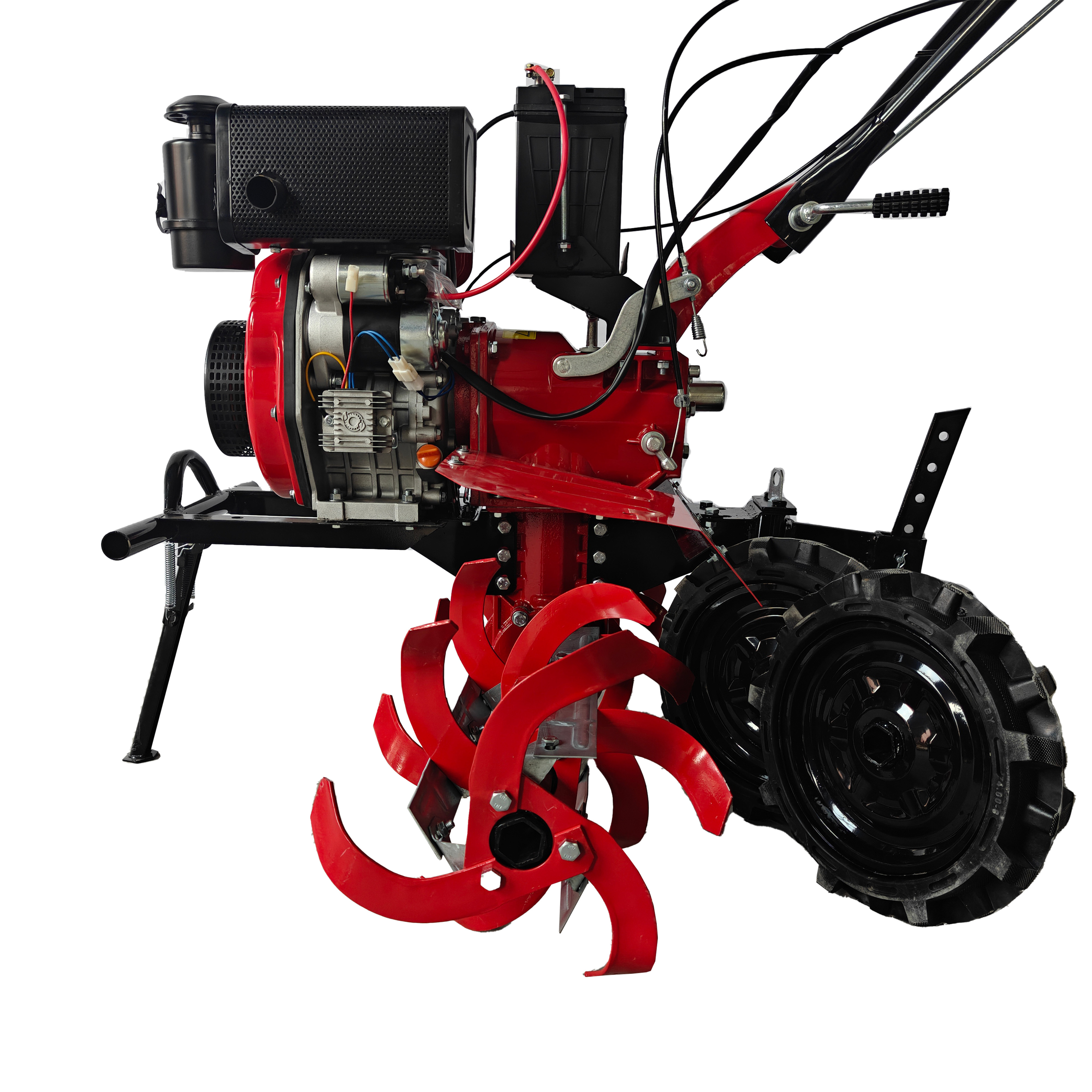

With a wide tilling width of 1350 mm and a tilling depth of up to 100 mm, this model delivers excellent productivity and large-area coverage. The 32-piece blade system, combined with a blade radius of 180 mm, ensures powerful soil penetration and efficient cultivation, even in hard or compact soil conditions.

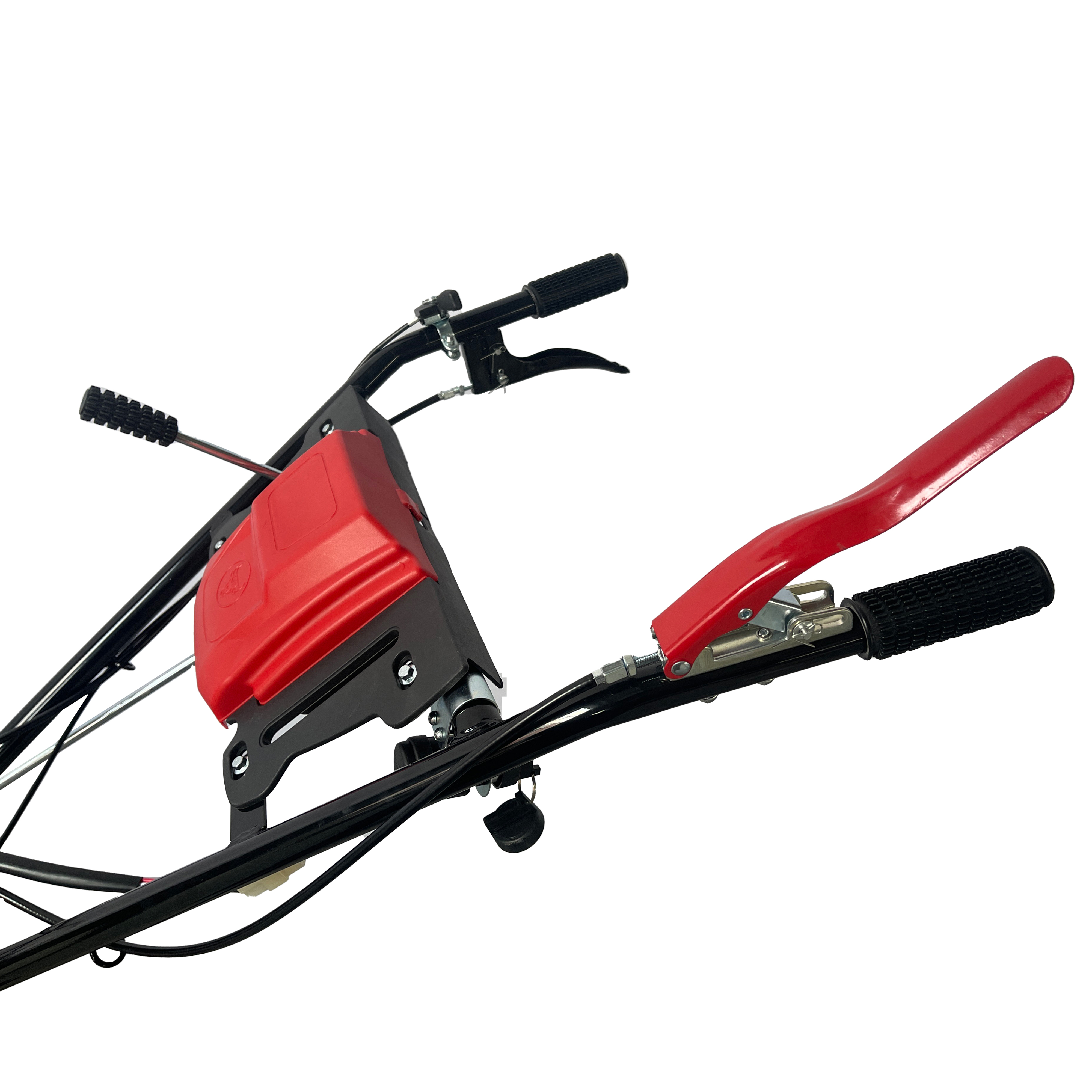

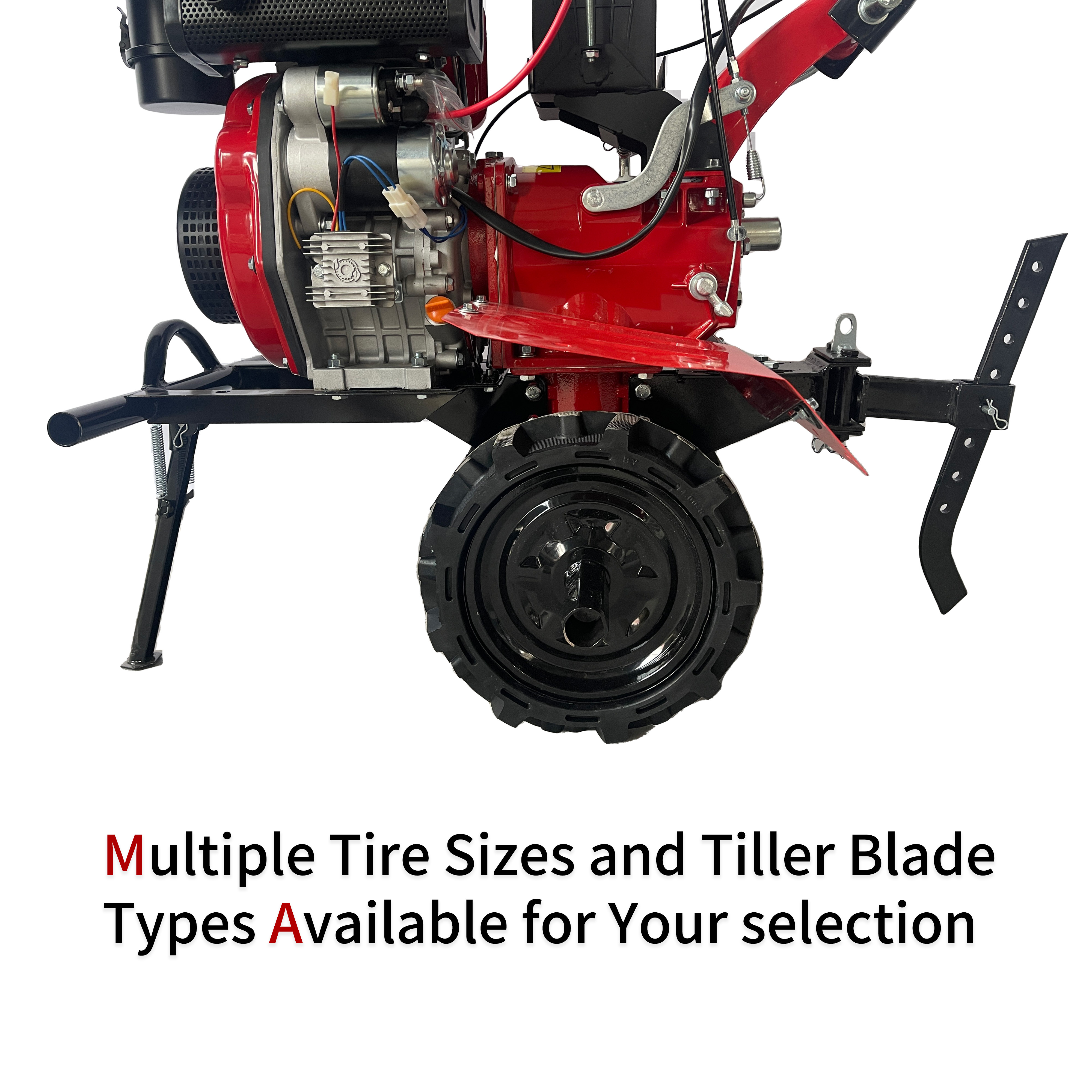

The TSBL1350D features a convenient electric starting system, ensuring quick and reliable ignition. It is equipped with 400-8 tires, offering strong traction and stability in different field environments. The adjustable handle design improves operator comfort, making it suitable for long working hours.
With a robust structure (1750 × 1350 × 1040 mm) and a net weight of 135 kg, the machine provides excellent stability during operation. Its fuel tank capacity of 5.5 L supports extended working time while maintaining efficient fuel consumption.
Overall, the TSBL1350D stands out as a high-power, durable, and high-efficiency diesel mini tiller, making it an ideal choice for professional users who require maximum performance and reliability in large-scale agricultural operations.
|
Product name
|
TSBL1350D 4WD
|
| Fuel type |
Diesel
|
| Transmission | Gear Drive |
| Engine Model | 195FA |
| Displacement | 532 cc |
| Gear Shifting | 2， 0 ，1， -1 |
| Starting Method |
Manual Start & Electric Start Optional
|
| Tire Size | 400-8 |
| Fuel Tank Capacity | 5.5L |
| Net Machine Weight |
135kg
|
| Gross Weight | 140kg |
| Package Size | 1890*1130*1530 mm |
| Notes |
During shipment, the tiller machine components are shipped separately from parts such as fenders and handlebars, without pre-assembly. Logistics shipping is typically done using Iron frame for container loading, with customizable packaging available upon request.
|
| Q: Are you a manufacturing company or a trading company? |
| A: We are an integrated trade and manufacturing company. All of our products are manufactured by our own company, and we have been operating in the Chinese market for over 10 years. |
| Q: Do you support sending samples? |
| A: Yes, we can produce and send samples according to your requirements. However, please note that you will be responsible for the costs of sample production and logistics. |
| Q: Do you offer branding on your products? |
| A: Absolutely! If you don't have a developed brand strategy, we can offer paid services to support you, including marketing, product customization, packaging design, and sales strategy development. |
| Q: How can I ensure the quality of the products I order? |
| A: We provide free inspection photos or videos from production to shipment. Additionally, we offer a one-year warranty on core components to ensure the quality of our products. |
