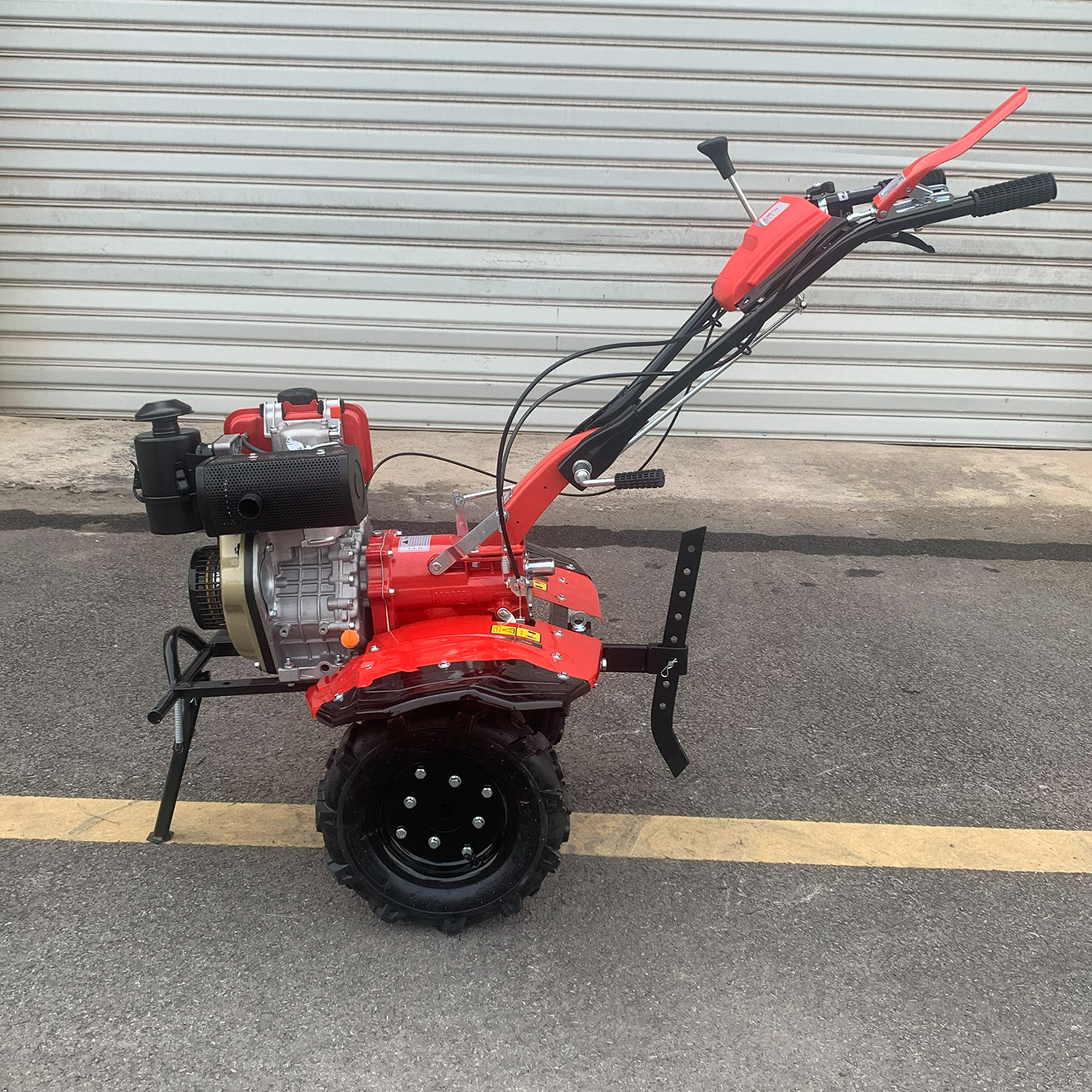

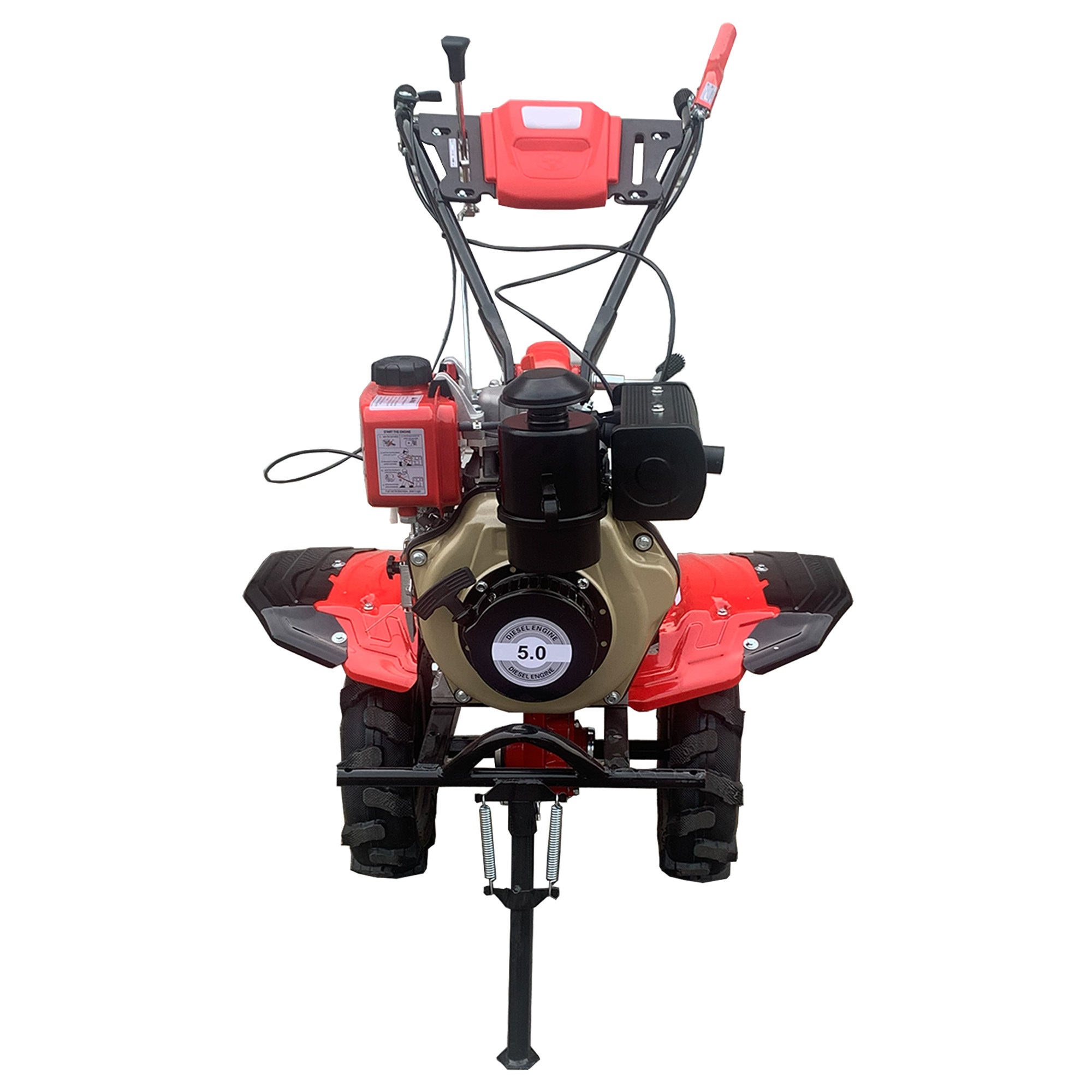

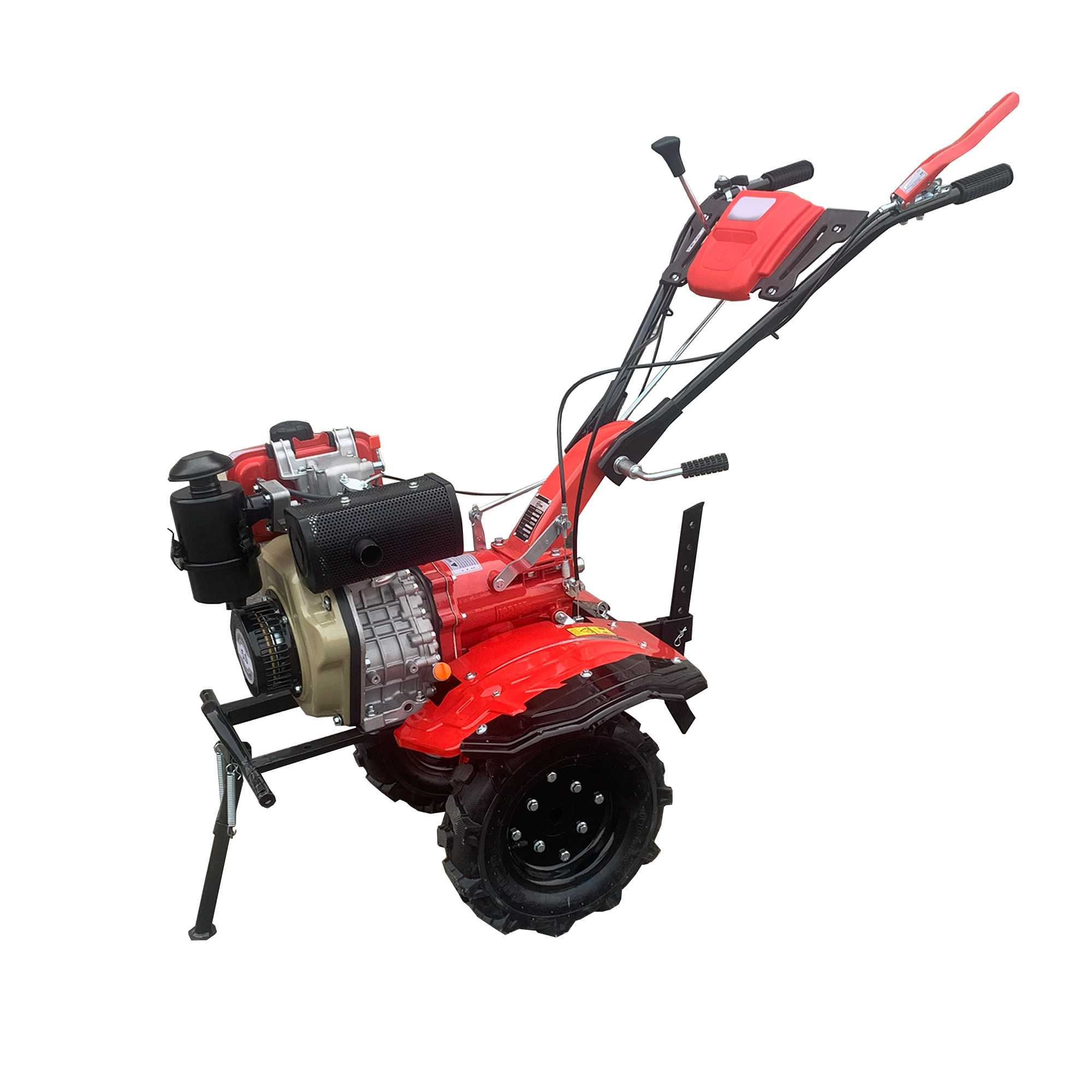

UPGRADED 5.5HP Diesel Tiller BIG Tire & Bumper Engine 173F 23mm Shaft

No.TSBL1000Dp

Upgraded with pneumatic tires and detachable blade system for improved traction and flexibility.

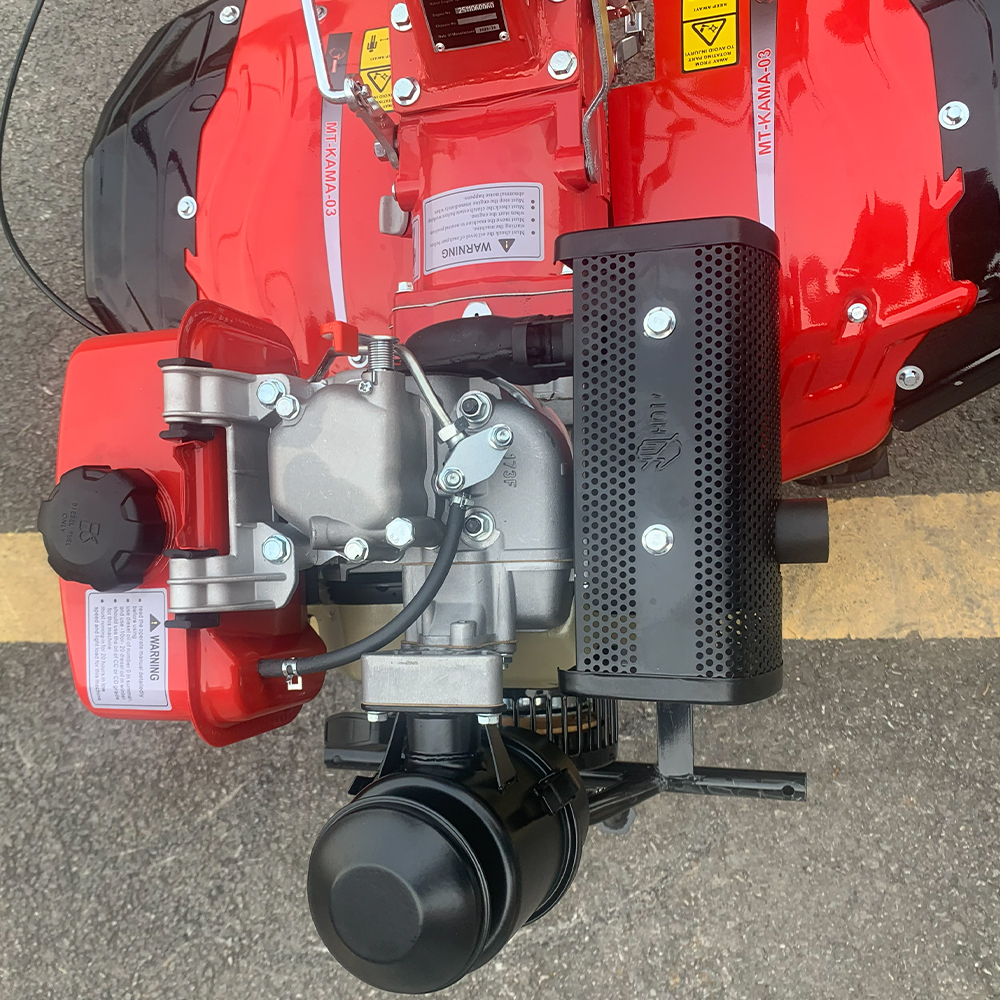

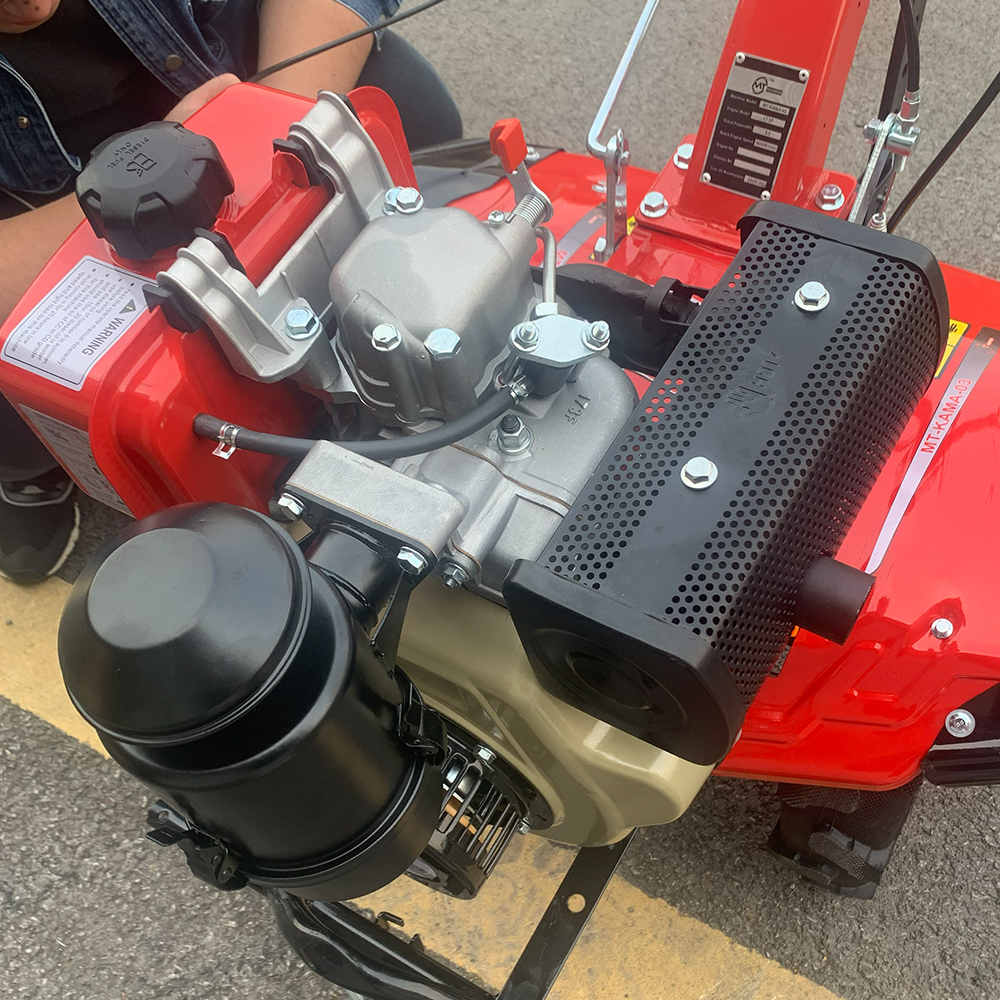

The TSBL1000Dp diesel mini tiller is an upgraded version of the standard model, designed to provide better adaptability, improved traction, and more flexible cultivation performance for everyday agricultural use. Powered by a reliable 173F diesel engine (5.5 HP), this machine delivers strong torque and excellent fuel efficiency, making it ideal for farms, gardens, and small to medium-sized fields.

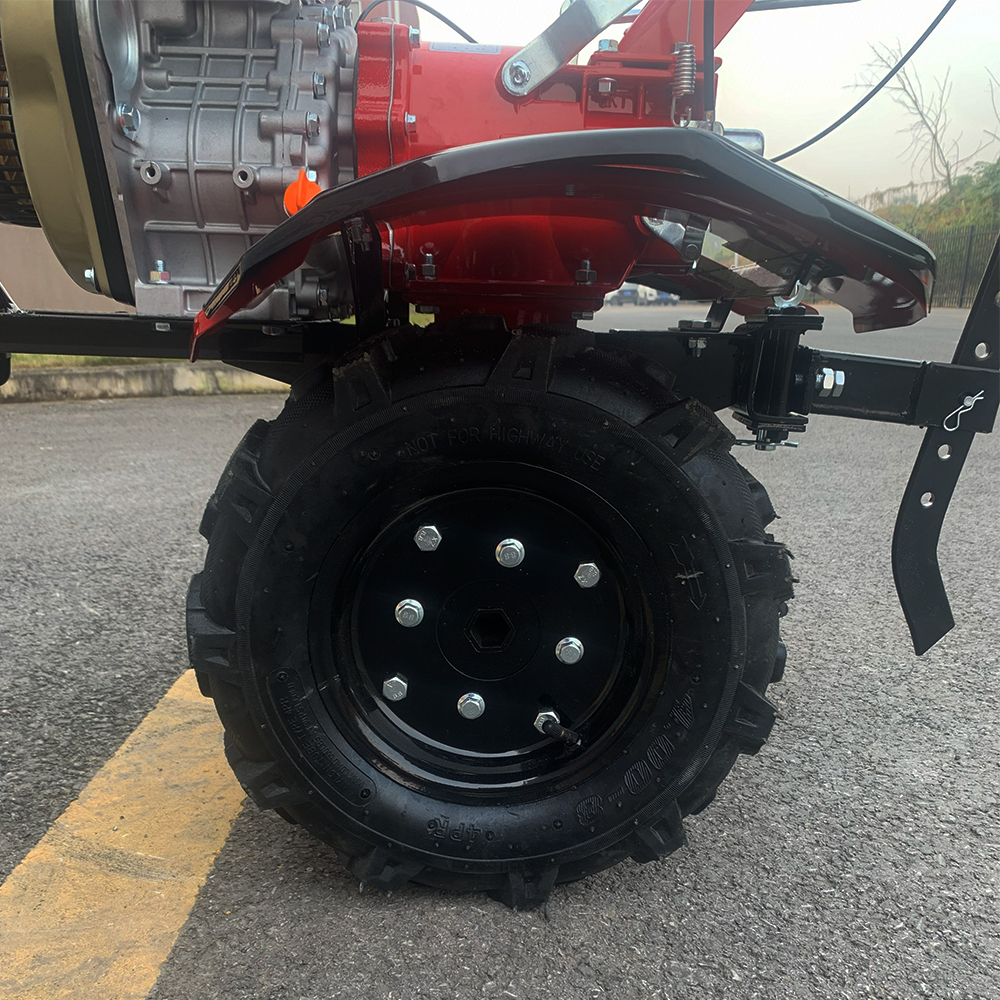

This upgraded version features 400-8 pneumatic rubber tires, offering enhanced grip, better shock absorption, and smoother operation across different terrains. In addition, it is equipped with a 32-piece detachable blade system (2+1+1 configuration), allowing users to adjust blade combinations based on working needs, improving versatility and ease of maintenance.

The TSBL1000Dp adopts a durable gear transmission system, ensuring stable power transfer and long service life. It features multiple gear options (2 forward + 1 reverse), providing flexible control and easy maneuverability. The centrifugal clutch system ensures smooth engagement and enhances operational safety.

With a tilling width of 1000 mm and a tilling depth of up to 100 mm, this model delivers efficient field coverage and consistent soil cultivation performance. The blade radius of 180 mm ensures effective soil penetration even in relatively firm soil conditions.

The TSBL1000Dp supports manual recoil starting and electric start, offering convenient and reliable ignition options. The adjustable handle design improves operator comfort, making it suitable for extended working periods.

With a compact structure (1600 × 1000 × 980 mm) and a net weight of 85 kg, the machine balances stability and maneuverability. Its fuel tank capacity of 2.5 L supports continuous operation with efficient fuel consumption.

Overall, the TSBL1000Dp stands out as a practical, durable, and user-friendly upgraded diesel mini tiller, offering better traction and flexible blade configuration while maintaining the reliability of the standard model.

Operation Method
Handheld & Walk Behind
Transmission
Gear
Clutch
Friction Plate Type | Normally Closed Clutch
Gear Shifting
2 , 0 , 1 , -1
Dimensions
1800*1200*1180
Hexagonal Main Shaft Diameter
23 mm
Blades
Dryland Blade 32pc (2+1+1)
Tilling Depth & Width
Depth 120 mm | Width 1100 mm
Tire
Pneumatic Rubber Tires: 400-8
Engine Model
173F, Single-cylinder, Four-stroke, Forced Air Cooling
Bore × Stroke
73*59 mm
Fuel Tank Capacity
2.5 L
Fuel Consumption
≤35 kg/hm²
Starting Method
Recoil Start
Package Info
Wooden Crate, 850*460*765 mm, 90 Kg
Starting Method:
Recoil Start
Crank Start
Electric Start
  • UPGRADED 5.5HP Diesel Tiller BIG Tire & Bumper Engine 173F 23mm Shaft
  • UPGRADED 5.5HP Diesel Tiller BIG Tire & Bumper Engine 173F 23mm Shaft
  • UPGRADED 5.5HP Diesel Tiller BIG Tire & Bumper Engine 173F 23mm Shaft
  • UPGRADED 5.5HP Diesel Tiller BIG Tire & Bumper Engine 173F 23mm Shaft
  • UPGRADED 5.5HP Diesel Tiller BIG Tire & Bumper Engine 173F 23mm Shaft
  • UPGRADED 5.5HP Diesel Tiller BIG Tire & Bumper Engine 173F 23mm Shaft

Description

Product name
TSBL1000Dp
Fuel type
Diesel
Transmission Gear Drive
Engine Model 173FA
Displacement 247cc
Gear Shifting 2, 0 ,1, -1
Starting Method
Manual Start & Electric Start Optional
Tire Size 400-8
Fuel Tank Capacity 2.5L
Net Machine Weight
85kg
Gross Weight 90kg
Package Size 850*460*765mm
Notes
During shipment, the tiller machine components are shipped separately from parts such as fenders and handlebars, without pre-assembly.
Logistics shipping is typically done using wooden crates for container loading, with customizable carton packaging available upon request.





Q: Are you a manufacturing company or a trading company?
A: We are an integrated trade and manufacturing company. All of our products are manufactured by our own company, and we have been operating in the Chinese market for over 10 years.
Q: Do you support sending samples?
A: Yes, we can produce and send samples according to your requirements. However, please note that you will be responsible for the costs of sample production and logistics.
Q: Do you offer branding on your products?
A: Absolutely! If you don't have a developed brand strategy, we can offer paid services to support you, including marketing, product customization, packaging design, and sales strategy development.
Q: How can I ensure the quality of the products I order?
A: We provide free inspection photos or videos from production to shipment. Additionally, we offer a one-year warranty on core components to ensure the quality of our products.
