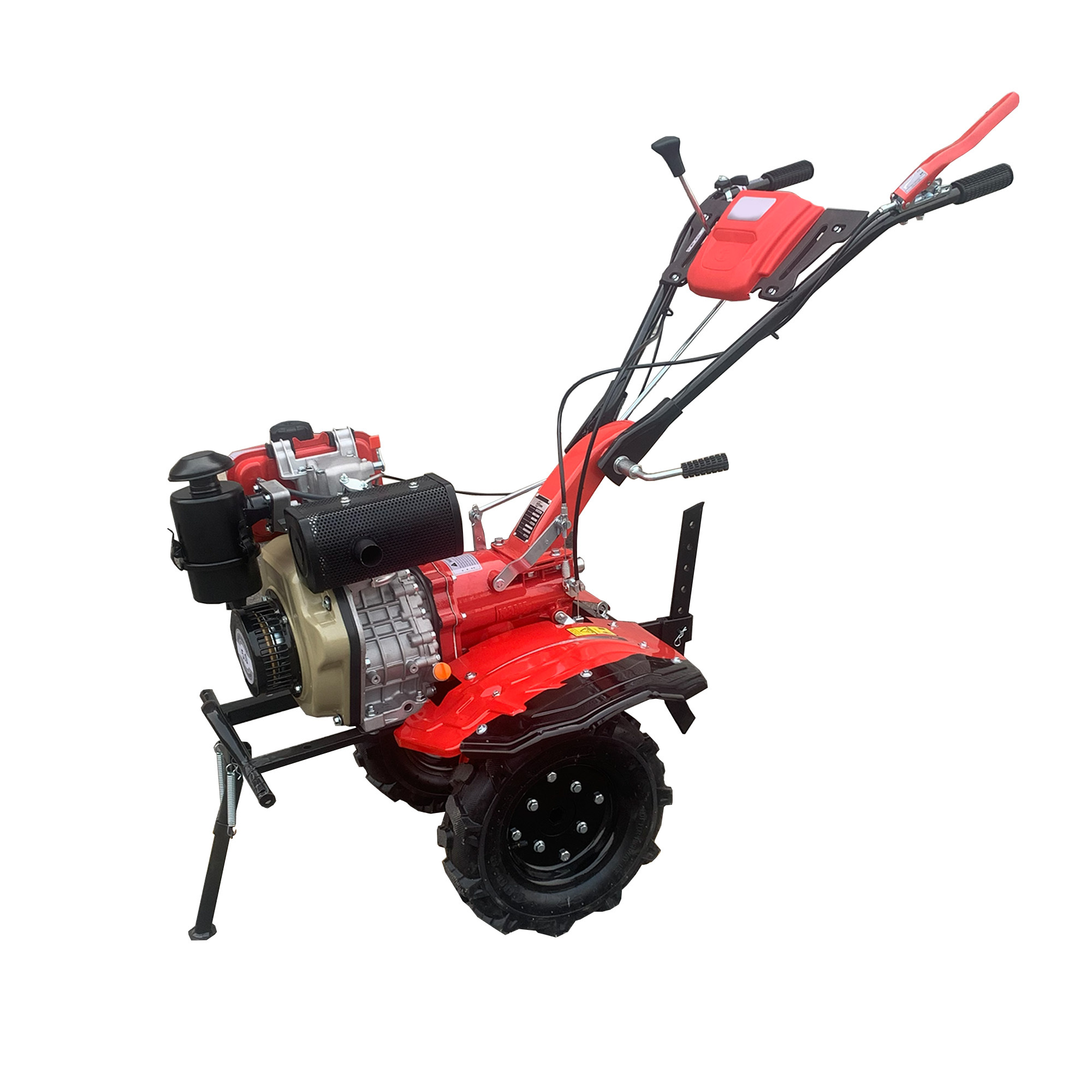

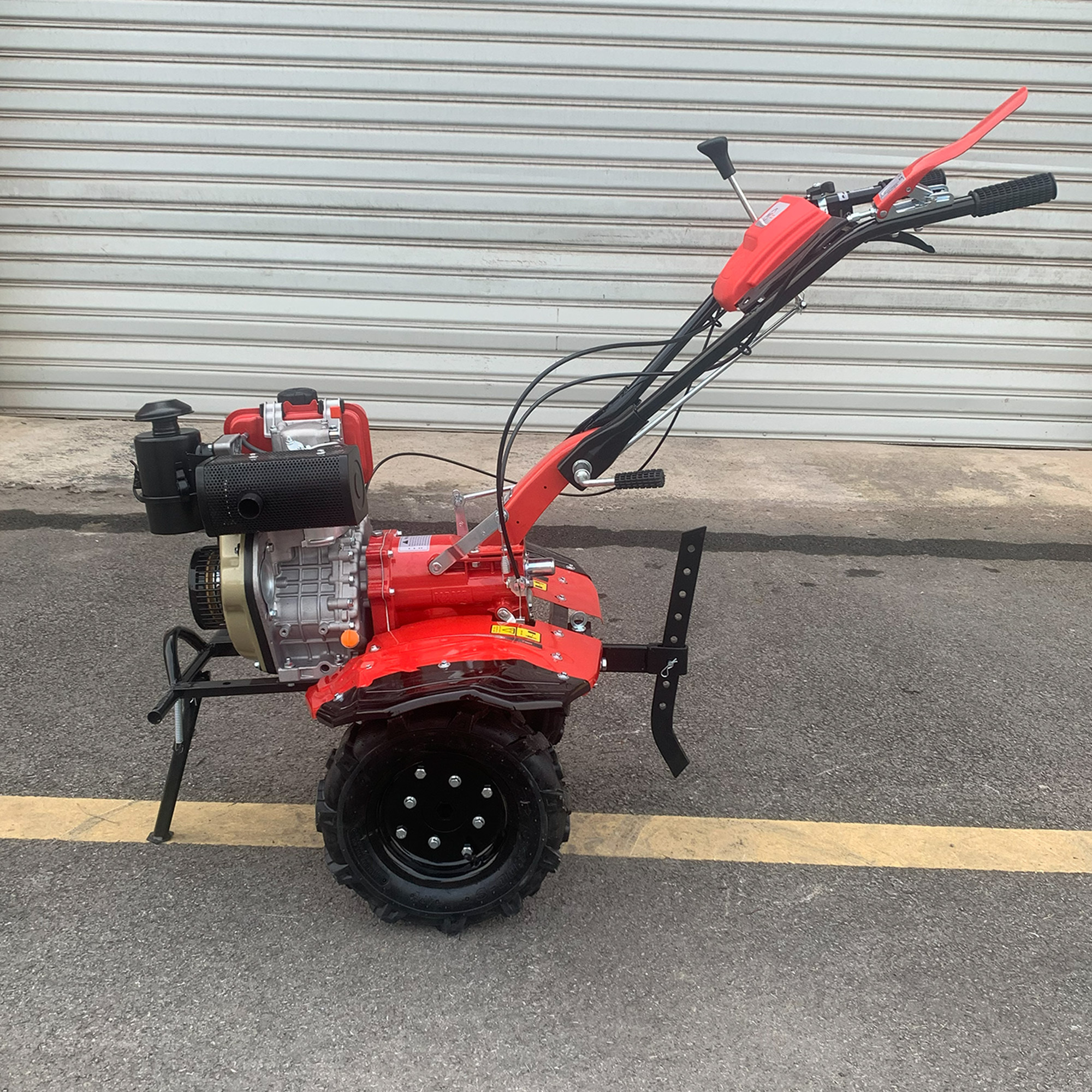

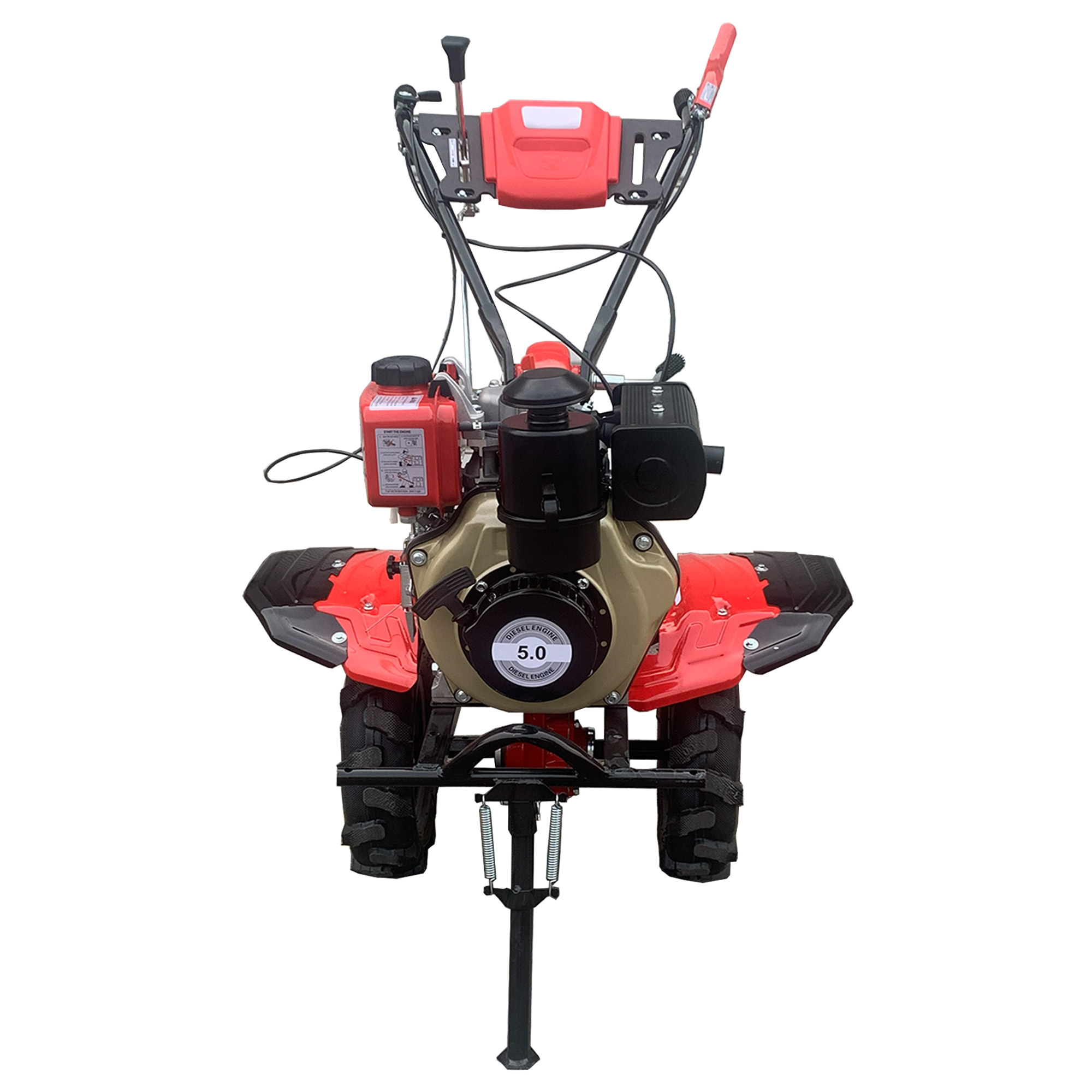

TSBL1000D 5.5HP Air Cooled Diesel Tiller with Direct Gear Drive

No.TSBL1000D
  • Ultra-Fuel Efficient 5.5HP Diesel: Powered by the reliable SBL 173F diesel engine. Consumes up to 30%-40% less fuel per hour than gasoline engines.
  • Constant-Closed Friction Clutch: Prevents belt slippage in wet loam. Provides constant tilling power (≥100mm depth) and exceptionally smooth clutch engagement.
  • Compact 1000mm Working Width: Highly maneuverable weight of 75kg (standard) to 85kg (upgraded), making it easy to steer for family farmers and homesteaders.
  • High-Strength Dryland Blades: Built to chew through tough clay, root-heavy garden patches, and crop residues smoothly.
  • Available Electric Starter Upgrade: Eliminates pull-rope starting hassle. Simply turn a key for instant, worry-free starting in cold weather.
Operation Method
Handheld & Walk Behind
Transmission
Gear
Clutch
Friction Plate Type | Normally Closed Clutch
Gear Shifting
2 , 0 , 1 , -1
Dimensions
1800*1200*1180
Hexagonal Main Shaft Diameter
23 mm
Blades
Dryland Blade 32pc (2+1+1)
Tilling Depth & Width
Depth 120 mm | Width 1100 mm

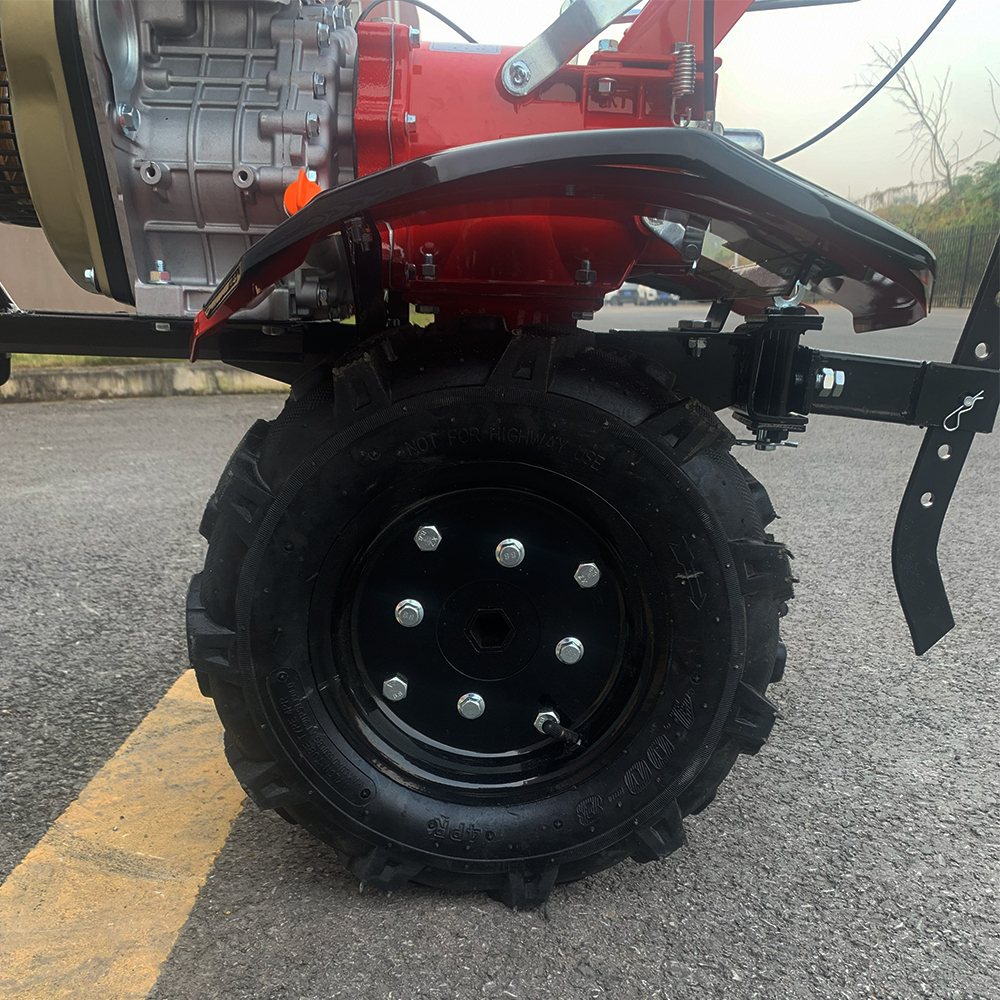

Tire
Pneumatic Rubber Tires: 400-8

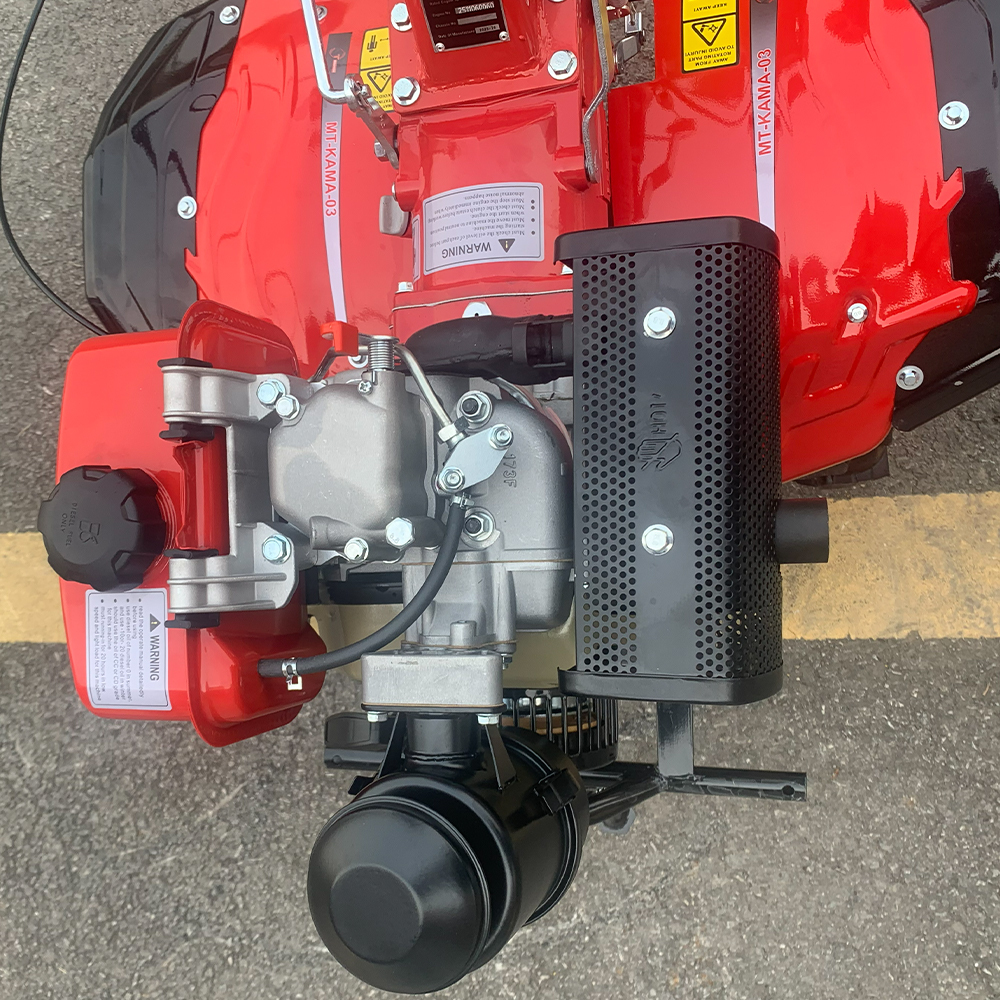

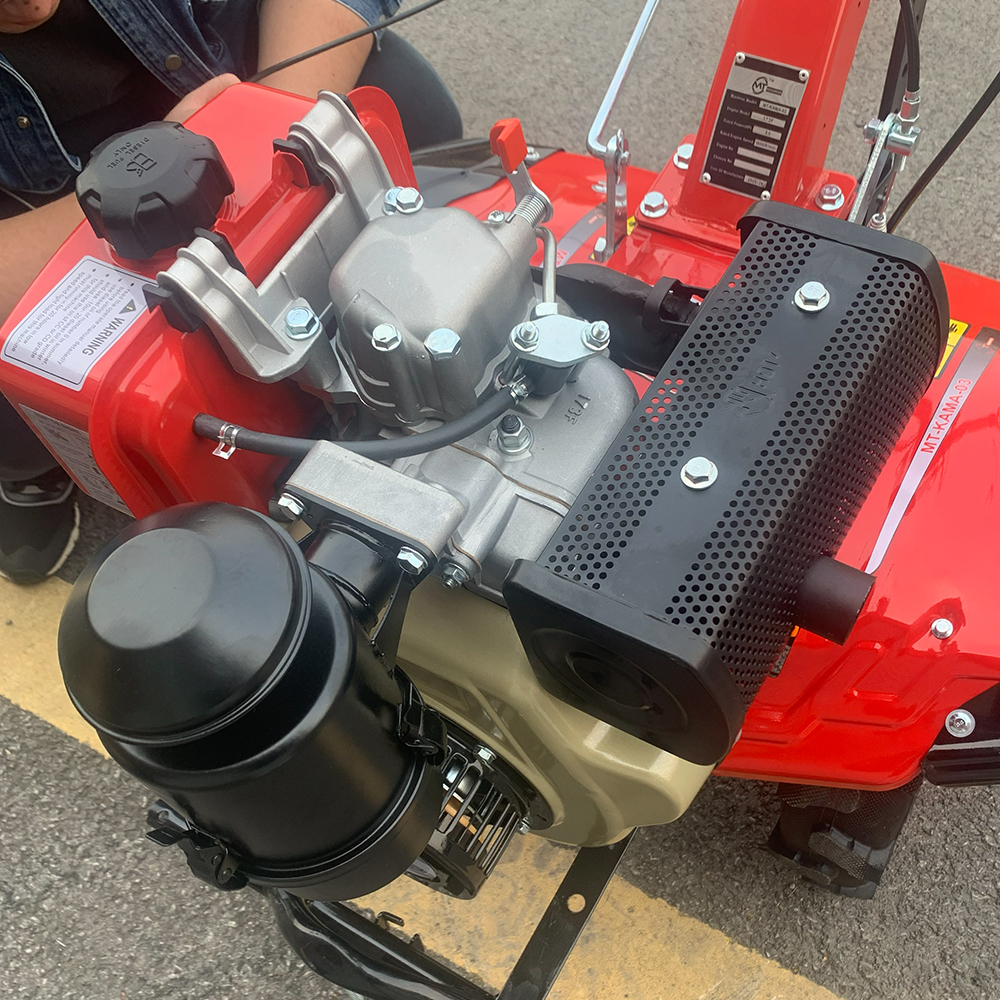

Engine Model
173F, Single-cylinder, Four-stroke, Forced Air Cooling
Bore × Stroke
73*59 mm
Fuel Tank Capacity
2.5 L
Fuel Consumption
≤35 kg/hm²
Starting Method
Recoil Start
Package Info
Wooden Crate, 850*460*765 mm, 90 Kg
Starting Method:
Recoil Start
Crank Start
Electric Start
  • TSBL1000D 5.5HP Air Cooled Diesel Tiller with Direct Gear Drive
  • TSBL1000D 5.5HP Air Cooled Diesel Tiller with Direct Gear Drive
  • TSBL1000D 5.5HP Air Cooled Diesel Tiller with Direct Gear Drive
  • TSBL1000D 5.5HP Air Cooled Diesel Tiller with Direct Gear Drive
  • TSBL1000D 5.5HP Air Cooled Diesel Tiller with Direct Gear Drive
  • TSBL1000D 5.5HP Air Cooled Diesel Tiller with Direct Gear Drive

Description

Product name
TSBL1000Dp
Fuel type
Diesel
Transmission Gear Drive
Engine Model 173FA
Displacement 247cc
Gear Shifting 2, 0 ,1, -1
Starting Method
Manual Start & Electric Start Optional
Tire Size 400-8
Fuel Tank Capacity 2.5L
Net Machine Weight
85kg
Gross Weight 90kg
Package Size 850*460*765mm
Notes
During shipment, the tiller machine components are shipped separately from parts such as fenders and handlebars, without pre-assembly.
Logistics shipping is typically done using wooden crates for container loading, with customizable carton packaging available upon request.





Q: Are you a manufacturing company or a trading company?
A: We are an integrated trade and manufacturing company. All of our products are manufactured by our own company, and we have been operating in the Chinese market for over 10 years.
Q: Do you support sending samples?
A: Yes, we can produce and send samples according to your requirements. However, please note that you will be responsible for the costs of sample production and logistics.
Q: Do you offer branding on your products?
A: Absolutely! If you don't have a developed brand strategy, we can offer paid services to support you, including marketing, product customization, packaging design, and sales strategy development.
Q: How can I ensure the quality of the products I order?
A: We provide free inspection photos or videos from production to shipment. Additionally, we offer a one-year warranty on core components to ensure the quality of our products.
